Associated Power Technologies AC Power Sources
APT 6000 series automated AC Power Sources are light weight, efficient and ideal for
advanced applications
Available versions:
6005 - 500VA AC Power Source
6010 - 1 kVA AC Power Source
6020 - 2 kVA AC Power Source
6040 - 4 kVA AC Power Source
***2 year warranty, 24 hour delivery and 45 day no questions asked returns***

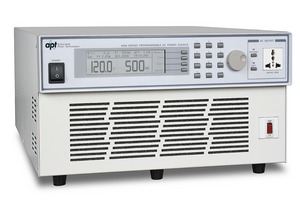

The 6000 Series automated AC power sources are ideal for advanced applications at a price
below the competition. Switch-mode technology and a direct coupled output make these
sources light weight and efficient for use on the bench-top or in a rack mount. The graphic
LCD display provides real-time data on the front panel and the easy-to-use local interface
allows operators to get tests up and running quickly. Use the rotary knob to adjust voltage
or frequency during testing, adjust the starting or ending phase angle of the output
waveform, and simulate the effect of voltage surges and drops on your DUT for transient
testing.
-50 built-in memory locations with 9 test steps can be linked to quickly store and recall test
parameters for multiple product testing applications
-Surge/Drop features simulate voltage variations, brownouts and transient voltage conditions
-Adjust the starting and ending angle of the output waveform
-LCD display monitors voltage, current, peak current, power and power factor
-Adjustable delay time, ramp up time, and test duration
-Independent, adjustable high and low limits for voltage, current, frequency, power, and
power factor
-Power Up feature configures the output relay for quick and efficient testing
-Constant current output with over current fold back feature
-Front panel lockout and password protection
-Standard USB/RS-232 interface with no charge optional Ethernet and GPIB interfaces
available
-Optional DC output voltage
-Rotary knob to adjust voltage and frequency on the fly
